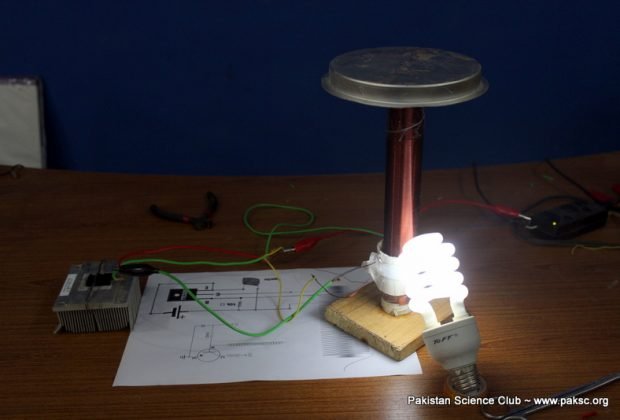

In this post you will learn how to make power full slayer exciter which is also called solid state Tesla coil. The circuit for the Slayer exciter is extremely simple .

Components

  1. Power transistor TTC5200 or MJE3055
  2.  Resistor 10 kilo ohms
  3. Ceramic Capacitor (any)
  4. Large heat sink
  5.  Copper Wire 28 to 30 gauge
  6. PVC Pipe 1 inch in diameter and 1 ft in length
  7. PVC Pipe  1.1/4 inch in diameter and 2 inch in length.
  8. Connecting wires
  9.  Power supply 24 to 36 volt
  10. connecting wires

Circuit Diagram.

Tesla coil circuit diagram
Tesla coil circuit diagram
Tesla coil circuit diagram with components
Tesla coil circuit diagram with components

Watch complete video tutorial


Video Demonstration Do it yourself "DIY" Tesla Coil Slayer Exciter

Video Tutorial of Do it yourself "DIY" Tesla Coil Slayer Exciter soon. please visit again.
